Best Load Cell Pedals for Sim Racing in 2026: 7 Sets Ranked

A load cell measures how hard you press the brake, not how far it travels. That single change is why load cell pedal sets are the most-cited upgrade in sim racing: your muscle memory keys on pressure, and pressure is what you can repeat corner after corner.

This is the focused version of our broader sim racing pedals guide.

Quick comparison

Pedal set	Brake capacity	Pedals	Platform	Best for
Thrustmaster T-LCM	100 kg	3	Console + PC	Best value
Moza CRP2	200 kg	2-3	PC	Best PC set
Fanatec CSL + LC kit	90 kg	3	Fanatec bases, PC	Cheapest path
Fanatec ClubSport V3	90 kg	3	Fanatec bases, PC	Features
Moza SR-P LC	75 kg	2	PC	Budget Moza
Heusinkveld Sprint	120 kg	2-3	PC	Endgame feel
Logitech Pro Pedals	100 kg	3	Logitech bases, PC	Console via G Pro

Best value: Thrustmaster T-LCM

The T-LCM democratized the load cell brake: 100 kg capacity, six swappable springs for tuning, three pedals, and support for every Thrustmaster base plus USB on PC. If you own a T248 or T300 on console, this is the upgrade to buy.

The frame flexes visibly under heavy braking and the throttle is stiffer than it needs to be. Both are forgivable at this price, and the brake itself delivers the consistency that actually matters.

Pros: cheapest three-pedal load cell, console and PC, tunable springs.
Cons: frame flex, stiff throttle, aging design.

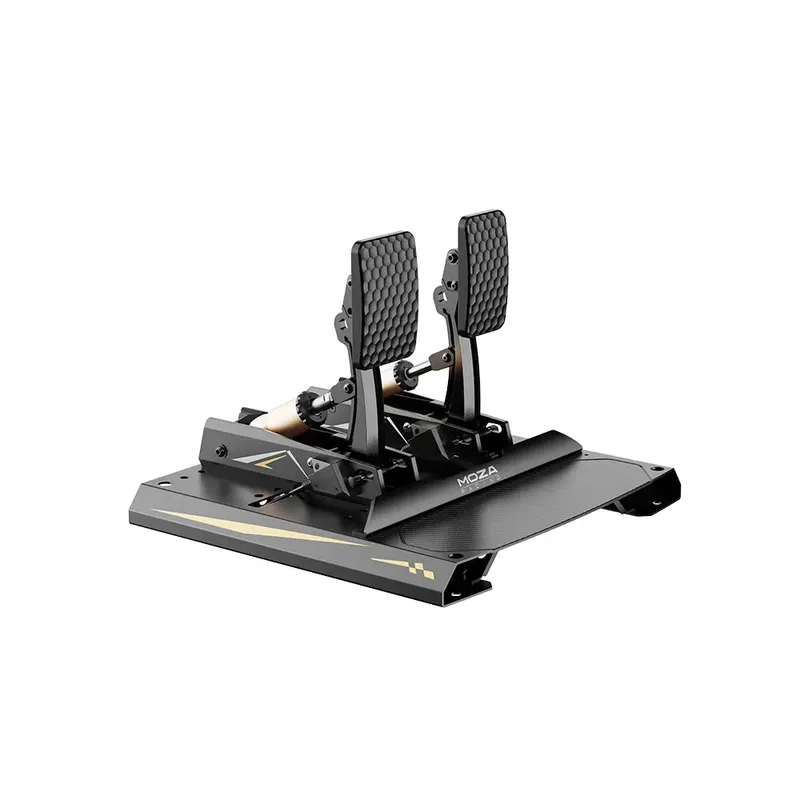

Best PC set: Moza CRP2

A 200 kg brake is double what most rivals offer, and the CRP2 uses that headroom to feel firm without being exhausting. Tool-free angle adjustment, swappable spring and elastomer kits, and plain USB connection make it the most complete PC pedal package short of boutique pricing.

It wants a rigid mount and it will not work on console. For PC sim racers, neither is a reason to look elsewhere.

Pros: 200 kg brake, deep adjustment, strong value.
Cons: PC only, needs solid mounting, clutch optional.

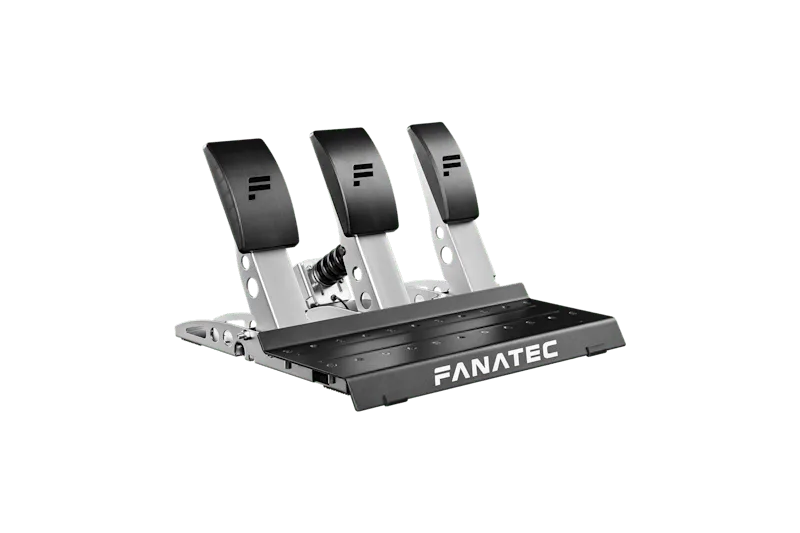

Cheapest path: Fanatec CSL Pedals with Load Cell Kit

Buy the two-pedal CSL set, add the Load Cell Kit, and you end up with three pedals and a 90 kg pressure brake for less than most dedicated sets. On a Fanatec base it works on console; on PC it runs over USB. For a GT DD Pro owner this is the natural next step.

The combined price creeps toward dedicated sets, and the kit-built brake feels more assembled than engineered. It is still the cheapest legitimate route on console.

Pros: lowest load cell price, console via Fanatec base, modular upgrade.
Cons: two boxes to buy, lighter construction, basic throttle.

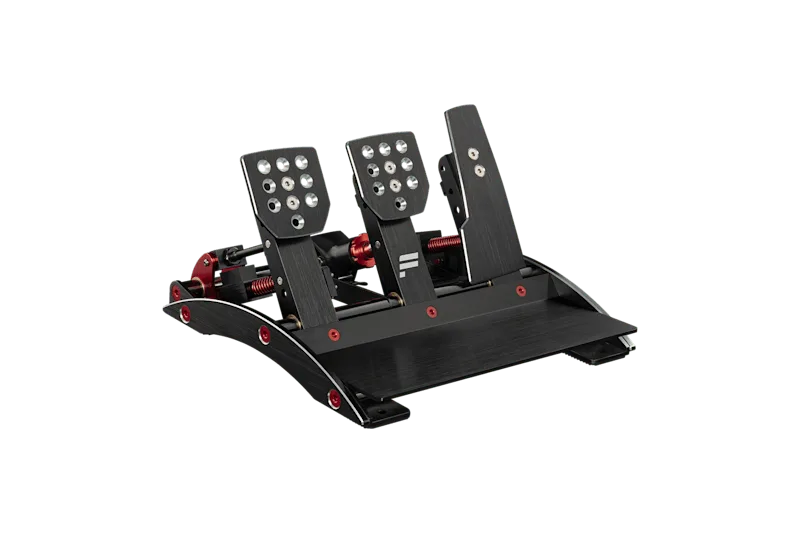

Feature pick: Fanatec ClubSport Pedals V3

The V3 is still the most feature-dense load cell set you can buy: contactless hall sensors on all three pedals, adjustable brake stiffness, and vibration motors that pulse for ABS lockup and wheelspin. Through a Fanatec base it works on PS5 and Xbox.

The design predates the CRP2 and feels like it. Buy it for the console compatibility and motor feedback, not because it is the newest thing on the shelf.

Pros: console compatible, vibration feedback, contactless sensors.
Cons: dated ergonomics, divisive vibration feature, mid-pack value.

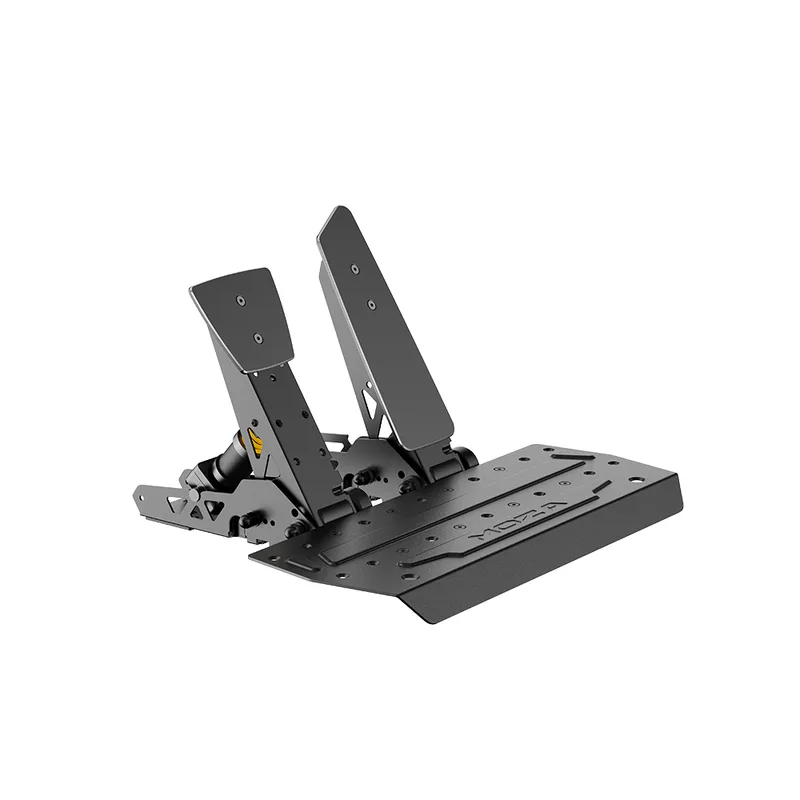

Budget Moza option: Moza SR-P Load Cell

The SR-P load cell variant is the cheapest ticket into Moza’s pedal ecosystem: a 75 kg brake, clean construction and USB for PC. It pairs naturally with R5 and R9 bases, and accessory kits push it toward CRP2 territory later.

Two pedals only, and the lower brake capacity suits moderate braking forces. Fine for most drivers. If you lean hard on the brake, buy the CRP2 instead.

Pros: affordable, Moza ecosystem, upgradeable.
Cons: two pedals, 75 kg ceiling, PC only.

Endgame feel: Heusinkveld Sprint

The Sprint is the pedal set reviewers keep around as their reference. The 120 kg brake with its elastomer stack produces a progressive, car-like pedal that cheaper sets approximate but never quite match. SmartControl software adds curve tuning if you want to shape the response.

PC only, boutique pricing, clutch costs extra. For most owners this ends up being the last pedal set they buy.

Pros: reference-grade brake feel, deep tuning, built to outlast.
Cons: PC only, premium price, two-pedal default.

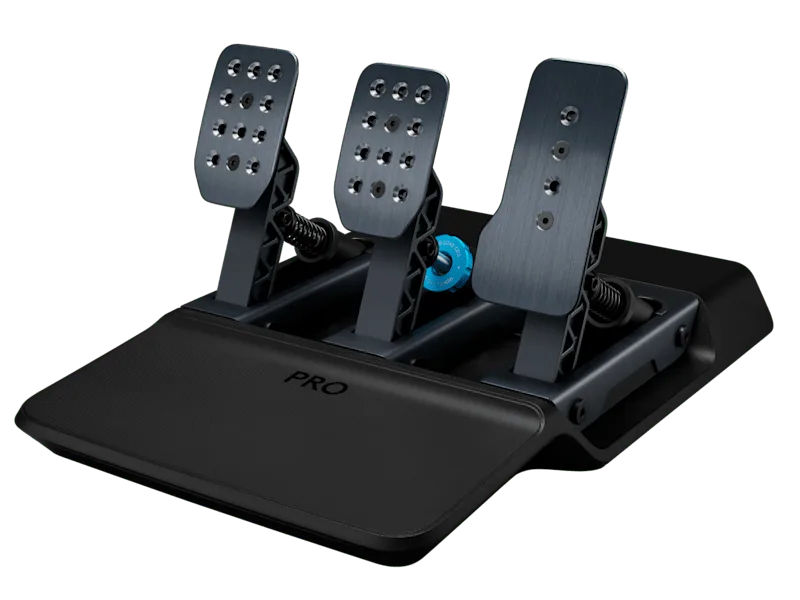

Console via G Pro: Logitech Pro Racing Pedals

The Pro Pedals are Logitech’s load cell answer: a 100 kg brake, three pedals, and console support through the G Pro base on PS5 or Xbox. On PC they run over USB with any brand’s wheelbase, which makes them unusually flexible for a Logitech product.

They are sparse on tuning next to Moza or Heusinkveld, and they make the most sense beside the G Pro wheel they were designed for.

Pros: console via G Pro base, USB on PC, clean design.
Cons: limited adjustment, priced for the ecosystem.

What to look for in load cell pedals

Brake capacity is not a spec race. 75 to 120 kg covers nearly everyone. Higher numbers mainly let you run a firmer pedal. What matters is repeatability, and every set here delivers it.

Console compatibility runs through the base. On PS5 and Xbox, pedals connect to the wheelbase and must match its brand: Thrustmaster, Fanatec or Logitech. USB pedal sets are PC only.

Stiffness needs anchoring. Any 90+ kg brake will slide a pedal tray on carpet. These sets expect a cockpit or at least a wheel stand with a pedal plate.

Check the pedal count against your cars. Paddle-shift GT and F1 cars never touch a clutch. Rally and road cars do. Buy two pedals or three accordingly.

Frequently asked questions

Load cell vs hydraulic pedals?

Load cells measure pressure against an elastomer or spring; hydraulics measure fluid pressure. Hydraulic feels closer to real brakes but costs two to three times more. Load cell is the right answer for almost everyone.

Will a stiffer brake make me faster?

Indirectly. A firm, consistent brake lets you build repeatable muscle memory, and repeatable braking is faster braking. The load cell matters more than the kilogram rating.

Can I add a clutch later?

CSL Pedals: yes, via the load cell kit. CRP2 and Sprint: yes, optional third pedal. T-LCM and ClubSport V3 ship with three. SR-P: two only.

Recommendation

Console players buy the Thrustmaster T-LCM or the Fanatec CSL Pedals with load cell kit. PC racers get more for the money from the Moza CRP2, and those chasing feel end at the Heusinkveld Sprint.

Sources

Specifications: Thrustmaster, Fanatec, Moza Racing, Heusinkveld, Simagic and Logitech G. Verify pricing before purchase.
